Remote Head Alex Analog
5.950,00 €*
Art.No. 8416-01
The robust Broadcast Remote Head
Low-cost entry system for cameras up to 15 kg, 2 axis pan & tilt system.
Weight only 6 kg
Accessories
(Prices excl. VAT)*
The highlights at a glance:
- Robust 12V drive system
- Control panel with speed control
- Change of direction Switchable for pan and tilt axis
- Power supply via V-Mount batteries (not included)
- Tilt axle can be decoupled from the drive for optimum weight reduction
- 80mm Euro-Mount connectors for mounting on ABC light cranes
- Lightweight ABC-Products Aluminum frame concept
- Height adjustment of the tilt axis
Delivery:
1 Remote Head Alex complete
1 Control unit with speed switches Level 1 slow / 2 fast
1 control cable 12 m
1 slide unit with long hole (for mounting camera base plate)
1 80 pipe with clamp
1 battery holder NP1
1 case / Robust Flightcase
1 Operating instructions
Info:
The Remote Head Alex Analog can be operated either hanging or standing.
E.g. On a camera car
Control panel Remote Head Alex Analog:
The control panel has a 2-axis joystick,
changeover switch for direction change, speed control.
Connection plate on remote head:
The connection plate on the remote head for the main control cable and the video cable.
Height adjustment Tilt axis:
The tilt axis can be decoupled from the drive to tare.
A height adjustment of the tilt bracket allows easy centering of the camera.
MovieTech 4×4 Dolly
Art.Nr. 2912-0

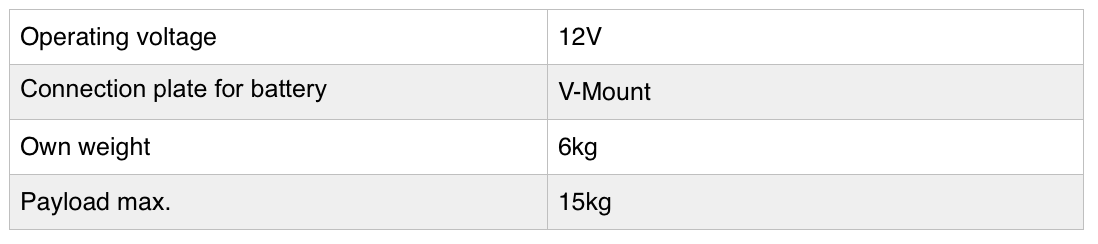

Technical specification:
Technical drawing:
DOWNLOAD Operating instruction, service booklet and coding data
Accessories:
Item No. 2912-1000 Main control cable for extension length 12m
