Remote Head Alex Digital
9.135,00 €*
The robust Broadcast Remote Head
(Item No. 8416-0 (digital)
- For cameras up to 15 kg, weight only 6 kg
- Individual set-up
- Ideal in connection with crane 100 or crane 120
- Programmable motors (V-min / V-max, Ram (approach and stop acceleration resp. braking behavior, etc. Software incl.)
- Zoom and focus control via control panel
- Rec. On / Off via control panel
- Speed control for zoom / focus and axis movements
Accessories
(Prices excl. VAT)*
The highlights at a glance:
- Control panel with speed control
- Change of direction Switchable for pan and tilt axis
- Power supply via 2x V-Mount batteries (not included)
- Tilt axle can be decoupled from the drive for optimum weight reduction
- 80mm Euro-Mount connectors for mounting on ABC light cranes
- Lightweight ABC-Products Aluminum frame concept
- Height adjustment of the tilt axis
Delivery:
1 Remote Head Alex complete
1 Control unit with speed controllers + Rec. On / Off
1 Control cable 20m
1 Slide unit with long hole (for mounting camera base plate)
1 Battery holder NP1 (24V)
1 Case / Robust Flightcase
1 Operating instructions
Control panel:
The control panel provides quick access to the most important functions such as zoom and focus.
Control panel Remote Head Alex Digital:
The control panel has a 2-axis joystick,
Changeover switch for directional change, speed control, selector switch for ramps via 4 levels programmable, zoomrocker, focuswheel, Rec. On / Off
Connection plate on remote head:
The connection plate on the remote head for the main control cable, video cable, connections for zoom and focus cables.
One-man control for the remote head:
The one-man control allows the crane and remote heads to be operated with one person.
Transport case for remote head Pelé:
Transport case with rollers and molded foam ensures safe transport.
Handles of the one-man operation:
Ergonomic design of the one-man operation for an optimal handling of the joystick, zoom and focus.

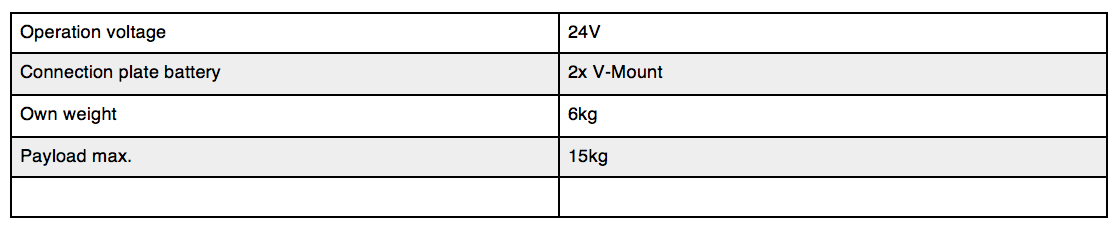

Technical specification:
Technical drawing:
Accessories:
Item No. 2912-1000 Main control cable for Alex Digital
Item No. 841210-0 Cable kit for zoom / focus control Canon
Item No. 841212-0 Cable kit for zoom / focus control Canon HD
Item No. 841212-0 Cable kit for zoom / focus control Canon HD/S
Item No. 2841215-0 Cable kit for zoom / focus control Angenieux
Item No. 841220-0 Cable kit for zoom / focus control Fujinon
Item No. 8412-500 Power supply Remote Head Alex Digital/ Pelé
